3 CORE OUTER AND INNER CUTTING STRIPPING MACHINE TM 680

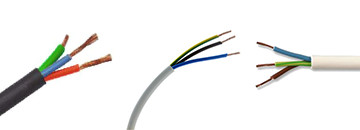

3-Core-Outer-and-inner-cutting-stripping-machine-Tm-680 2 Core Flat Cable

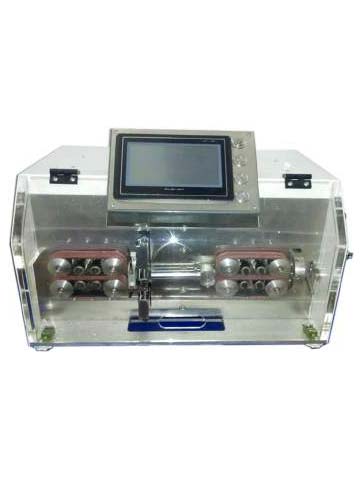

3 Core Outer and inner cutting stripping machine Tm 680

Product Description

Model :TM 680 Wire Cutting and Outer Sheath and Inner Core Striping Machine for Round Wire

Specification

Model

TM-680

Dimension

700 mm x 660 mm x 430 mm

Weight

81KG

Power Supply

220V/110V 50/60HZ

Power Consumption

850W

Cutting Length

Maximum 400m

Stripping Speed (200 mm Length)

600 roots per hour

Air Pressure

0.3-0.6 Mpa

Wire Type

PVC, Teflon, Glass Wire

Maximum Diameter of catheter

11

Peeling Accuracy

+0.2mm

Processing Round Sheath Outer Diameter

3-10 mm

Number of Machinable Cores

2 Cores, 3 Cores, 4 Cores, 5 Cores

Display Mode

Chinese and English operation interface can be switched between each other
(using 7 Inch Touch screen)

Peeling Length

Head Peeling (30-200 mm) Tail Peeling (30-100 mm)

Core Peeling Length

Head Peeling 3-10MM, Pail Peeling 3-30MM

Blade Material

4 Blades Adopts Imported High Speed Steel

Driving Mode

8-Wheel Drive, Motor Ball Screw Drive
