4 STATION STATOR WINDING MACHINE

Stator Paper Inserting Machines

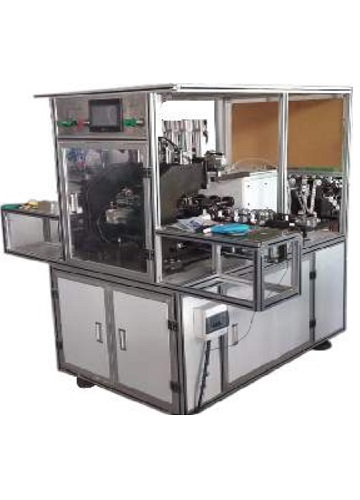

4 STATION STATOR WINDING MACHINE

Technical Specification

Display PLC Control, Touch Screen
Voltage AC 380V Three Phase Four Wire System
Motor Power 4KW
Air Supply 0.4-0.7mpa
Speed Range 0.600 rpm
Efficiency Dia 0.35/.50 loop, 4.-45s/4pcs
Stroke Range 130-195mm, 145-21mm (Adjustable)
Apply for Pole Number 2 Poles
Stamping Thickness 1.-40mm, 25-60mm
Wire Dia 0.15-0.8mm
Stator Outer Dia 28-50mm
Stator Inner Dia 50-90mm
Size 1680*1850*1620mm
Weight 1.6T
