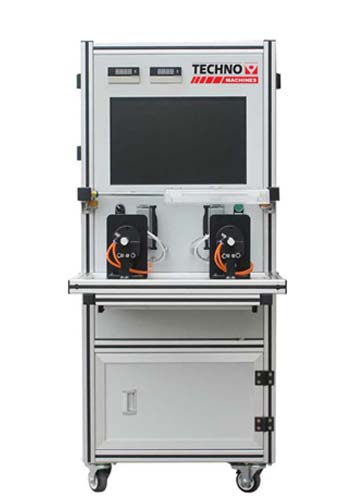

Armature Rotor Testing Machine

Armature Rotor Testing Machine

Armature Rotor Testing Machine

Description

Model: TM-330 B

Features

Model: TM-330 B

Specifications :

Test PerformingWithstand Voltage, Insulatlion, Piece Resistance, Welding Resistance, Diagonal Resistance, Turn-to-turn, enameled wire electric leakage
Rotor / Armature Diameter15mm-60mm
Commutator Diameter15mm-35mm
Rotor / Armature Shaft Diameter4.5mm-12mm
Turning Amount0.02-0.25mm
Power Supply0.5kW / 220V
Dimension600mm X 980mm X 1400mm
Weight145kg
Hi Power0.2500 VAC (Adjustable)
Insulation Resistance500VDC (0.500 M Ω)
Interturn0-2500 (Adjustable)
Resistance0-0. 500-5 . 00Ω (Custome Made)
Resistance Welding0-10Ω
Temperature Automatic Compensation to 20°C
