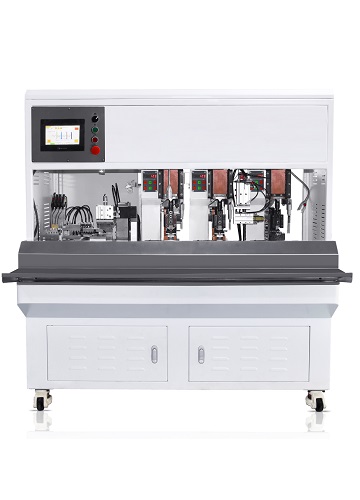

Automatic Multi Core Stripping and Crimping Machine

 Automatic Multi Core stripping crimping machine

Automatic Multi Core Stripping and Crimping Machine

Product Description

Model:Multi Core Crimping Machine

Specification

Wire Applicable

3core cable/4core cable

Capacity

4core 550-600PCS/h 3core 800-900PCS/h

Cutting Length

Length difference 0-200MM

Accuracy

±0.1(0.1+0.005*L)

Stripping length

0-15mm (Set0.1mm)

Crimping capacity

3 Ton

Control method

Frequency converter drive, AC motor

Power, Compressed air

3phase 220V ±10%(50/60HZ)、0.5Mpa 150(ANR)/min

Dimensions

1500mm*970mm*1700mm

Weight

550KG
