STATOR COIL WINDING MACHINE TM-160

coil-winding-machine

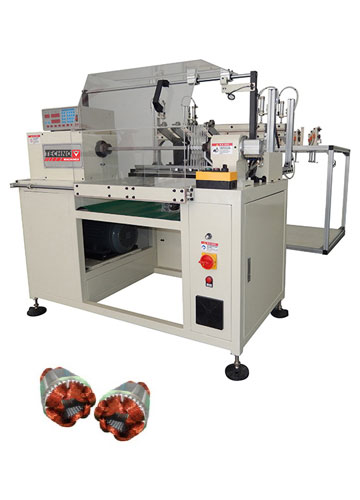

Stator Coil Winding Machine TM-160

Features

Model: TM-160

It can use for multilayer winding, and one time can do 1-8pcs coil. It has lots of functions like can set changing groove automatically, winding beginning, slow start, slow stop, both sides stop, back to beginning and automatically start. We will give one extra roller for changing, these machines suitable for motors of the fan, pump, air condition, 3 phase etc.

Characteristics

The model can be used for competition; multi-layer coil control can be time around the 1-8 sets of line dedicated line of the pure machine can be set for automatic change from the point, slow start, slow stop, two cheap parking, automatic homing, automatic start and other functions

Machine Type and Model TM1-160
Wire Diameter 0.1mm-1.2mm
Swing Diameter 220mm
Winding Head 1-8
Max Stat Height 100mm
Screw Stroke 170mm
Screw Stroke 170mm
Max Speed 3200 r/min
Air Pressure 0.4 MPa
Power Supply 220V/50/60Hz/0.75kw
Power Supply 220V/50/60Hz/0.75kw
Weight 350Kg.
Dimension 1520 x 1220 x 1290mm
