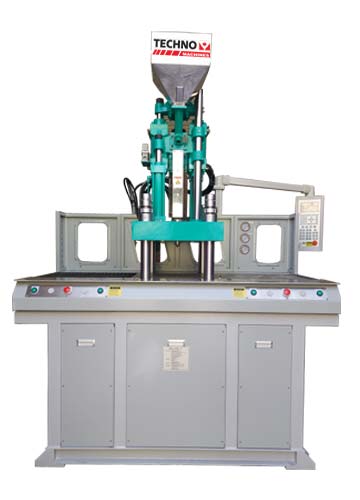

Double Sliding Vertical Injection Machine

Double Sliding Vertical Injection Machine

Double Sliding Vertical Injection Machine

Product Description

Model: UNIT TM-85TON SL

Features

Injection Unit

Screw Diameter mm 32Ф 36Ф 40Ф
Theoretical Injection Volume Cm3 128 163 200
Injection weight (PS) g(OZ) 121 154 190
4.3 5.5 6.7
Max. Injection Pressure Mpa(kgf/cm2) 2050 1620 1312
Injection rate cm2/s 130 165 202
Injection Speed mm/s 160
Screw Speed Rotation r.p.m 300
Nozzle out from platens mm ≥45

Clamping Unit

Clamping force KN(tf) _________ 833 (85) _________
Clamping Stroke mm 250
Min. Mold Thickness mm 240 (320)
Max. Opening mm 490 (570)
Distance Between Tie Bars (L x W) mm 520 x 320
Max. Mould Size (L x W) mm 500 x 450
Platen Size (L x W ) mm 500 x1000
Ejector Distance mm 40
Ejector Force KN(tf) 17.2 (1.75)

ROTARY UNIT

System Pressure Mpa (Kgf/cm2) ________ 140 ________
Oil Tank Capacity L 200
Electric Power KW(HP) 11 (15)
Heater Power KW 6.4
Machine Dimensions (L x W x H ) mm 2.4 x 1.2
3
Machine Weight KW 4.8
