High Speed Cutting Striping Machine TM-HS-260

High Speed Cutting Striping Machine Wire Cutting Machine

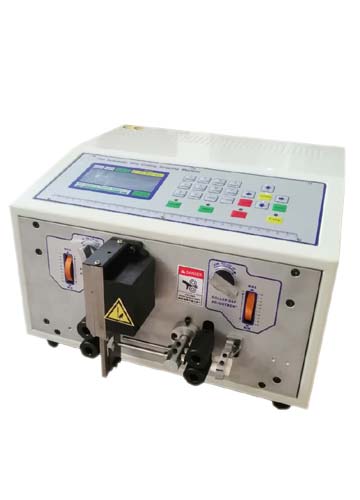

High-Speed Cutting Striping Machine

Product Description

Model: TM-HS-260.

Features

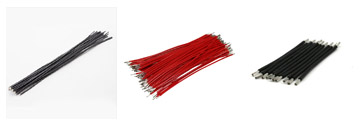

  • Suitable for Cutting, Head-stripping and Tail-stripping of single-strand and multi-strand wire
  • Can process wires in such industries as electronic products, electric appliance, toys and auto motorcycle parts, etc.
  • With a microcomputer-controlled very clean designed mechanism, it cuts and strips wire automatically.
  • Various cutting style and programmable length and distance can suit any wire assembly needed

Specification

Model

TM-HS 260

Weight

30-31KG

Overall Dimensions

390*350*235mm

Power

160-300W

Mode of display

LCD LIQUID CRYSTAL DISPLAY SCREEN

Cutting Length

1mm-9999mm

Cutting Tolerance

≤0.002*L(CUTTING LENGTH)

Stripping Length

HEAD 0-35mm,TAIL 0-10mm

Cutting Cross-Sectional L Area Of Wire Core

0.1-3.0mm2

Maximum Diameter of  Conduit Pipe

11

Middle Stripping

10 PLACES OF STRING

Material of Knife

 TUNGSTEN STEEL

Stripping Speed

3000-80000PCS/H

Mode of driving

FOUR-WHEELED DRIVE

Adjusting Speed

0 SLOWEST, 9 FASTEST
