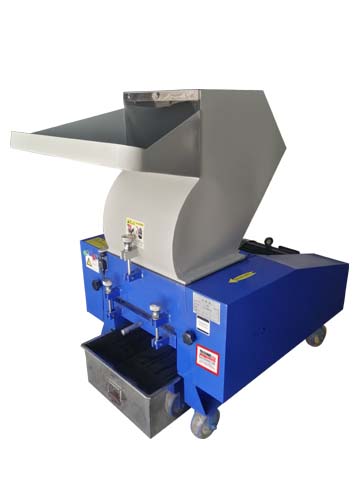

Large Cable Crusher

Product Description

• Crusher standard optional flat blade and flake blade.
• Standard with all steel blades, if enhance abrasion resistance can choose the blade of SKD11.
• The standard is equipped with: overload protection, short circuit protection, hopper open shutdown protection.
• Fan feeding can choose dust recycling and secondary deducting.

Features

Machine Type	Plastic Crusher
Aplicable for	ABS PP PVC PVC PE PET
Max Production Capacity	300 kg/h
Production Capacity	200-300 kg/h
Voltage	380V 50Hz
Power	15kw
Blades Material	55 SiCr/D2/SKD-11/Cr12Mo1V
Blade Shape	Flat/flake blade
Fixed Blades	4
Rotary	18x6
Dimension	1155x1370x1680 mm
Rotation Speed	580
Weight	980kg
Infeed Opening	310x600
Crushing Rotary	Φ330x600
Screen size	Φ12
