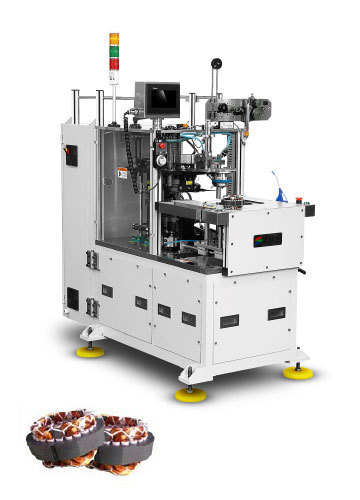

Motor Thread Binding Machine

Motor Thread Binding Machine

Motor Thread Binding Machine

Features

Model : TM-100A1

  • Adapt to the Stator Diameter ≤ φ160
  • Adapt to the Stator Diameter φ30 ~ φ100mm
  • Stack Thickness Range of 10 ~ 80mm
  • Replacement Mold Time: 10 minutes
  • Random Distribution of Wearing Parts: tie pin 2, line 2
  • Full Servo System, CNC Control System Design
  • Man-Machine Interface
  • Indexing servo system can be used to set each slot, compartment, job-hopping and fancy lashing
  • Spindle with a servo control system, speed can be set
  • Use of servo system control double needle at the same time upper and lower end line bag lashing
  • With cable and tension device, tie tightness adjustable
  • Production rhythm 24 slot by slot tied ≤ 12S / Taiwan
  • Tie line must not be tied line, not to hurt the film
  • A pass line pass rate ≥ 99.5%; after passing the qualified rate ≥ 99.9%
  • Use of security protection agencies, standing operation, start using one hand button
  • Servo Motor: Taiwan Delta
  • System Control: CNC motion controller
  • Pneumatic Components: Taiwan Yade off
  • Sensor Components: OMRON, AUTONICS
  • Other Components: TEND, DELIXI, SCHNEIDER
  • Power Supply 380V / 50 / 60Hz 5Kw; Final whole
