Multiple Plug Tester

Multiple Power Plug Tester Plug Tester

Multiple Plug Tester

Product Description

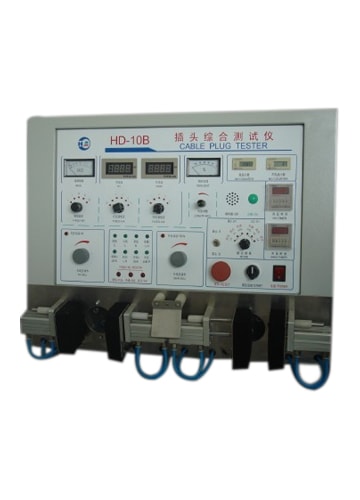

Multiple Plug Tester

Specification

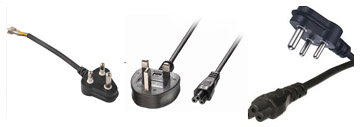

Our company is engaged in the manufacture of a wide range of Multiple Plug Testers which have been made using the best technology available in the market and they are used for testing the plugs to ensure they are in perfect condition. These products have been made using the best raw materials which have been bought from reliable market vendors and they offer a long-lasting service to the customers. These products are high on demand in the market and they are very durable.

Features –
  • Reliable
  • Cost-effective
  • Long-lasting.

Specification

Items Explanations
High voltage test Output voltage 0-5KV MAX10mA
Power rating 500VA
Waveform 50/60Hz AC sine wave
Voltage calibration Within +/-5%
Switch Zero level switch
High voltage dial gauge head Scale 1:25
Class 1.5CLASS
Precision ±3%
Failure judgment Judgment
  • The Measured Value is more than the reference value.
  • Cut off output voltage and provide a failure signal.
The Fixed value of leakage current 0.5,1,3,5,10mA
Judge precision n ±3% currently set value
Calibration Pure resistive load serial R M S Truth table test
Insulating Resistance Output voltage 500VDC
Voltage calibration ±10%
The Setpoint of the reference Value 2/7/20/50/100MΩ
Judgment The insulating resistance of a tested object is smaller than the set the reference value; provide the failed IN signal.
Judge precision ±10%
Dial gauge head(0-100 MΩ) ±10%
Measuring range 0-∞
Size Fuselage size 780*500*500
Input voltage 220VAC±10%
