ROTOR / ARMATURE BALANCING MACHINE

Rotor Balancing Machine Rotor Balancing Machine

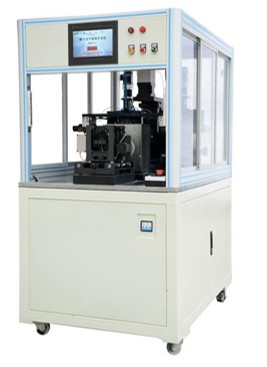

Rotor / Armature Balancing Machine

Description

Model: TM-2000A-01A

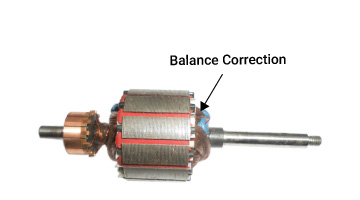

This machine has high testing precision and moderate production yield, suitable for high demanding on balance value and automatic production line

Features

  • Manually uploading and downloading
  • Testing station and the cutting station is separated to reduce interference
  • Testing parts adopt high-performance industrial computer, digital processing vibration signal
  • Turning tools adopt imported hard alloy of integrated manufacturing with high hardness and long-term life
  • High power vacuum, collecting iron broken with high performance
  • Adopting PLC control, it is convenient to set parameters through a touch screen

Major technical parameter:

O.D. of Stack < φ55
Length of Shaft <150
Thickness of Stack <60
Measurement Display Accuracy 0.1mg 0.1°
Repeat Accuracy ±2.5mg ±2.5°
Measuring Velocity <6S
Use Environment 20--35℃ ≦85%RH
Weight About 1000kg
Dimensions (990 x 1400 x 1800)mm LxBxH
