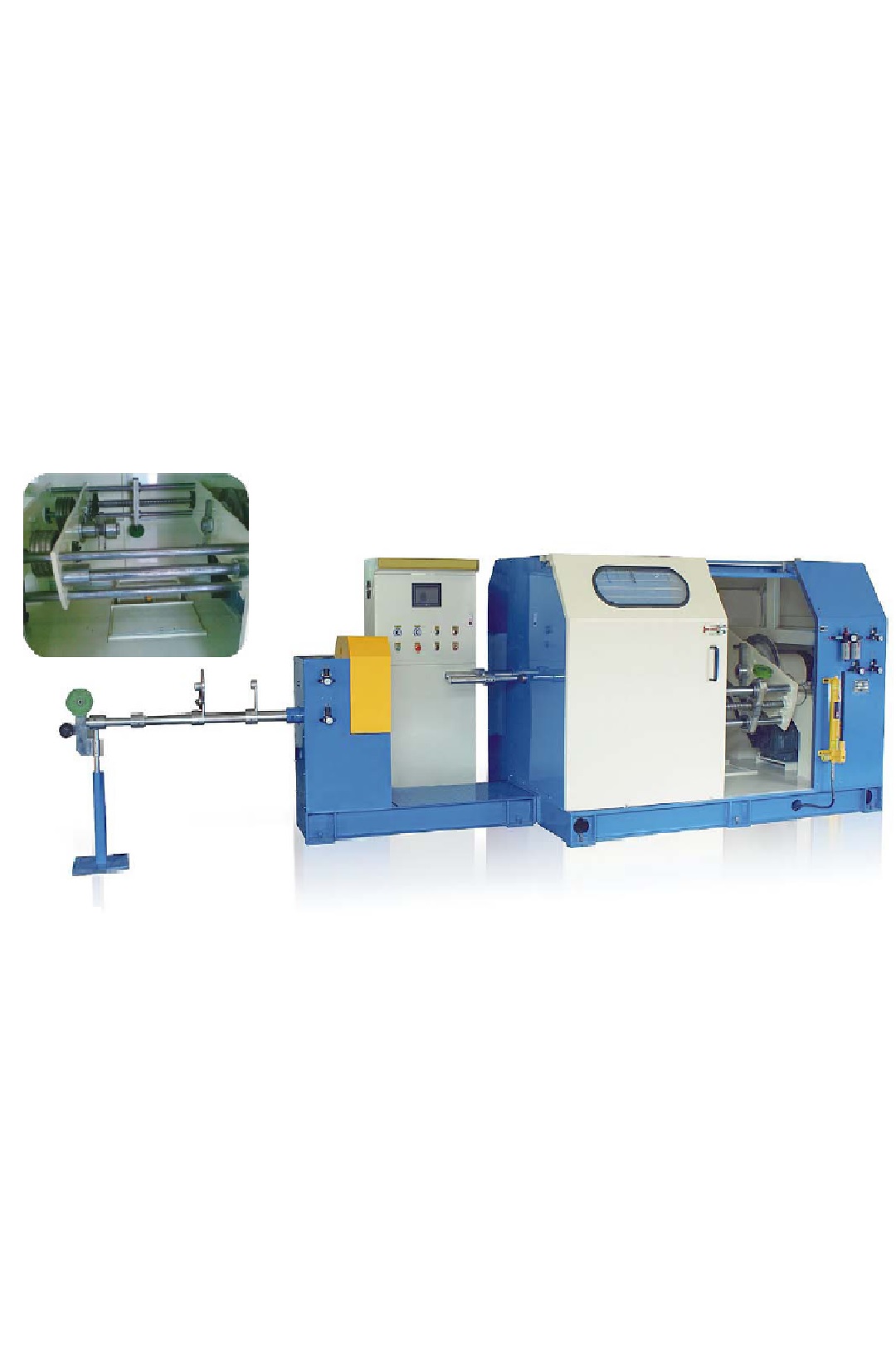

Single Twisting Laying Machine 800 mm

Single Twisting Laying Machine  800 mm

Single Twisting Laying Machine 800 mm


Suitable for all kinds of power cable, communication cables and other cores laying along with central taping and longitudinal taping.

TECHNICAL SPECIFICATIONS:

Model 800 laying
Payoff Bobbin Size Φ500 mm-Φ630mm
Take-Up Bobbin Φ800 mm
Finished Diameter Φ15 mm
Twisting Speed 50-55 Mtr./Minute (in 75 mm Pitch)
Twist Pitch 30-300 mm stepless Speed regulation
Rotation rate 1200 rpm
Loading Type Hydraulic Pump
Traverse Screw Type
Take-Up Tension Pneumatic
Twisting Direction Exchange Wrapping Direction "S or Z"
Taping Type Longitudinal or Spiral
Taping Material Cotton, Mylar or Aluminum foil
Weight 3200 Kg Approx.
