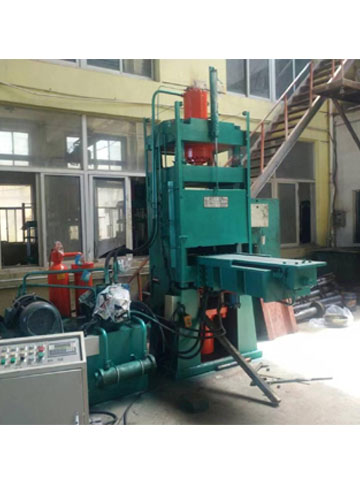

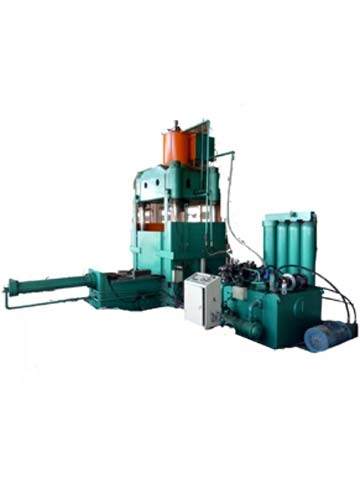

Vertical Die Casting Machine 160 Ton

Vertical Die Casting Machine 160 Ton

Vertical Die Casting Machine 160 Ton

Product Description

Model -160 Ton

Features

Injection Unit

Model TM-160 Ton
Die Casting MachineTon160-400
Manupulator Motor DrivekW0.75
Tablespoon Motor DrivekW0.75
RV Reducer40E 1:153
RV Reducer 20E 1:121
Tablespoon TypekG0.8 - 4.5
Tablespoon Maxmm350
Recommended Height of Smeltermm ≤ 1100
Recommended Thickness of Smelter armmm≤450
Cycle TimeArm45
Main Control PowerVoltAC 220V/50Hz
Power CapacityKVA1.67
Diemensionmm1140*680*1400

Clamping Unit

Clamping ForceKN160
Return forceKN250
Injection forceKN1000
Cutting forceKN200
Push mold forceKN100
Hydraulic maximum working Mps25
Maximum distance between slider and working areamm800
Injection strokemm200
Min-Max rotor dia mm120-210
Min-Max rotor height mm50-360
Max al wt kg13
Maximum cylinder diameter180
Nitrogen pressureMpa10(max)
Filling pressureMPa13(max
Slider speed
Fast downmm/s90
Slow downmm/s30
Returnmm/s100
Injection
Fast downmm/s4000
Slow downmm/s26
Returnmm/s85
Area of worktable
Left to mm/s750
Front to backmm/s750
Size
Front to back mm/s2900
Left to mm/s3500
height mm/s3100
Total Power kW/s11

Haydraulic Component

Axial piston pump40YCY14-1B1
Pressure gaugeYZX-100 4
Solenoid valveFull set
AccumulatorPcs1
Injection hydraulic systemPcs1
AccumulatorSet1
Oil cylinderSetFull set

Electrical Component

AC contactorzhengtai
Circuit breakerDelixi
Button Delixi
