WIRE CUTTING STRIPPING & TWISTING MACHINE TM-220T

High Speed Twisting Machine Cable Twisting Machine

WIRE CUTTING STRIPPING & TWISTING MACHINE TM-220T

Product Description

Model: TM-220T

Features

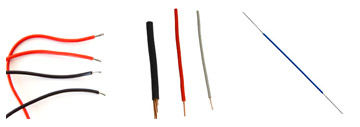

  • Suitable for cutting, head-stripping and tail-stripping of single-strand and multi-strand wire and sheath wire
  • The maximum processing cross-sectional area is 0.1-3mm2, the maximum cutting length is 9999mm, head-stripping 25mm and tail-stripping 15mm
  • Suitable for stripping and twisting super short wires with shortest wire of 28-30mm
  • With rollers lifting function when stripping wire head

Specification

Model TM-220T
Weight 32KG
Overall Dimension 390*350*255mm
Power 200-450W
Mode of Display LCD LIQUID CRYSTAL DISPLAY SCREEN
Cutting Length 0.35mm-9999mm
Cutting Tolerance ≤0.002*L(CUTTING LENGTH)
Sheet Stripping Length HEAD 0.1-25mm,TAIL 0.1-15mm
Cutting Cross-Sectional Area of Wire Core 0.1-3mm2
Maximum Diameter of Conduit Pipe 11
Material of Knife TUNGSTEN STEEL
Stripping Speed 3000-4000PCS/H
Mode of Driving FOUR-WHEELED DRIVE(EACH STEP 0.1mm FORWARD)
Adjusting Speed 0 SLOWEST, 9 FASTEST
Twisting Length HEAD 0.1-10mm, TAIL 0.1-10mm
