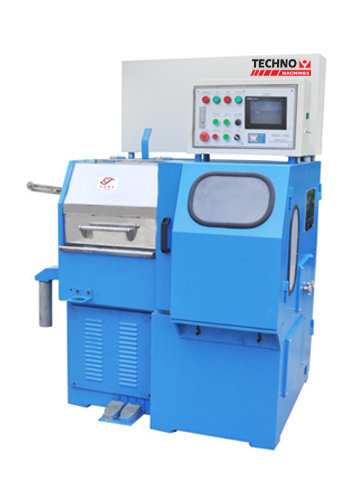

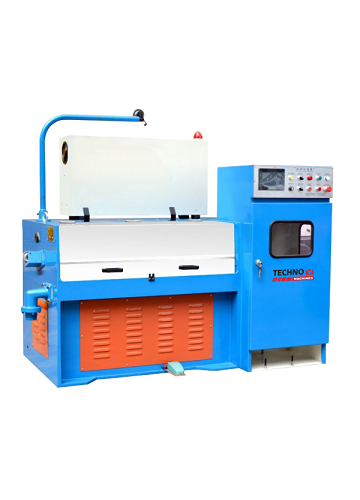

Wire Drawing Machine

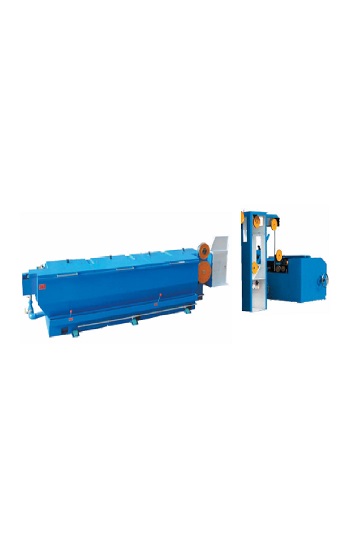

Wire Drawing Machine

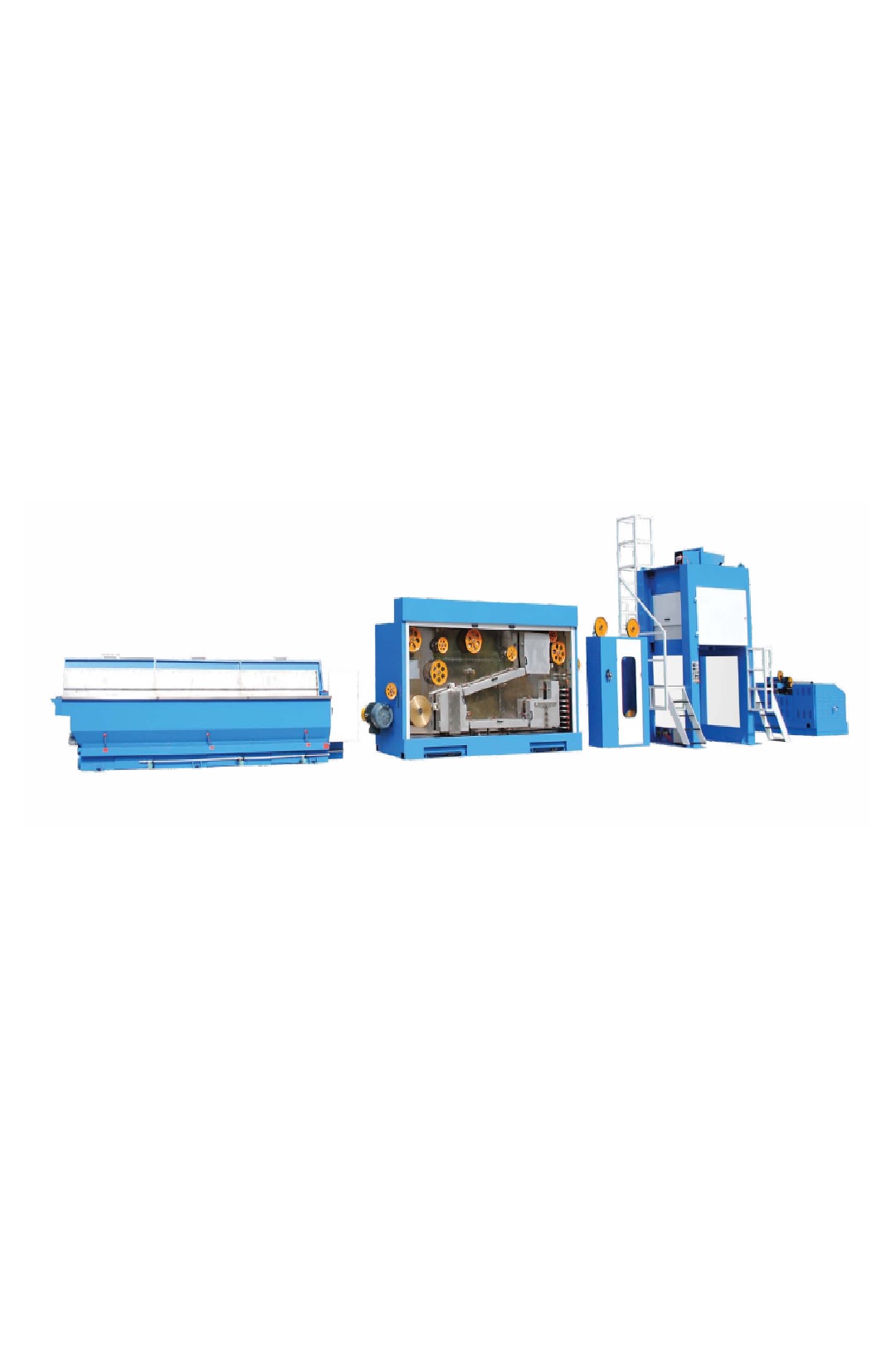

Wire Drawing Machine

Product Description


Automation Grade Automatic
Max Inlet Wire Diameter (mm) 0-3 mm
Min Finish Wire Diameter (mm) 0-1 mm
Layout Horizontal
Automation Grade Automatic
Power Control Dual Inverter
Wire Inlet Dia 0.5-1.2mm
Wire finished Dia 0.08-0.32mm
Max Wire Speed 2500M/min
Max Dies No 24
Mechanical Elongation 15%+8.7%
Construction of the Mechanical Body Monoblock Casting
Drawing Capstan Imported high-Quality Ceramic
Final Capstan 206
Take-up reel size 300*215*250 mm
Transerve type Flat Belt
Drawing/Take-up of motor AC 11kw/ AC 4kw
Max load Capacity 50 kg
Power Supply 380v
Lubricant Capacity 40 l
Brake Magnetic
Dimensions 2.67*1.5*1.95 mm
Weight 2000 KG
