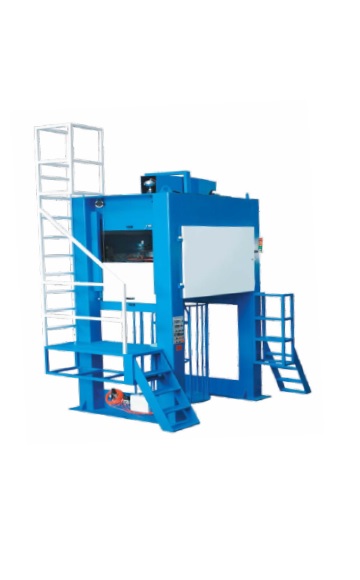

Drop Coiler Machine

drop coiler machine

Drop Coiler Machine


TECHNICAL SPECIFICATIONS:

Model TM-800 Drop Coiler
Wire Size Φ1.2-Φ2.4 mm
Speed Max. 1200 Mtr/min
Coiler Diameter Φ800 mm
Take Up Stand Size Φ580 x Φ1050 x Φ1600 mm
Take Up Stand Capacity Max. 1800 Kg
Coiler Motor Power AC 15kW
Spooling Motor Power 0.75 kW
Over All Dimension 4.28L x 3.8W x 4.55H Mtr.
Weight 500Kg

PRODUCTION SPEED:

Wire Size 2.6 mm 1000 M/min.
Wire Size 2.0 mm 1200 M/min.
Wire Size 1.2 mm 1200 M/min.
