Automatic Copper Terminal Lugs Brazing Machine

Automatic Copper Terminal Lugs Brazing Machine

Automatic Copper Terminal Lugs Brazing Machine

Product Description

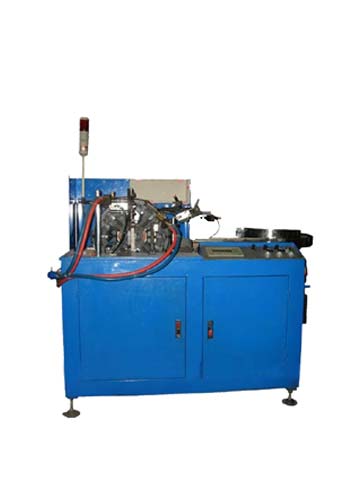

Automatic Copper Terminal Lugs Brazing Machine

Model : Terminal Brazing Machine

  • The terminal welding machine is using step-addition principle, terminal positioning constructions of the rotor again for procesor welding.
  • The terminal of the highest welding machine processing speed is 80-100 times/minutes.
  • This machine is mainly to straighten clip to terminal by integration with the wheel to make terminal connections to crack in preheated hong-chun silver copper wire into shape will crack welding.
  • Power: 0.4k 50Hz
  • Outlook size: 1350 x 760 x 1600 (mm)
  • Weight: 300Kg
  • Before operating machine, please read carefully the operation manual, and ensure according to the instrauction manual operation.
Model Terminal Brazing Machine
Power 0.4K 50Hz
Dimension 1350 x 760 x 1600 (mm)
Weight 300KG
  • Protect Cover
  • Claw Discs group
  • Straight vibration group
  • Intergrating the group
  • Lamp faults
  • Clip group
  • Wire feeding group
  • Vibration plates
  • Operation Panel
