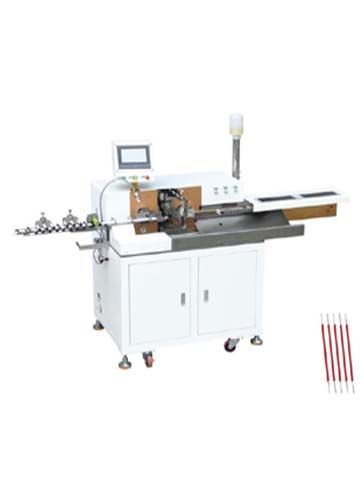

Multi Line Automatic Wire Cutting Stripping Twisting and Tinning Machine

Technical Specification

Model TM-Z10
Weight380 kg
Dimension1720*750*1400 (mm)
PowerAC220/50Hz
FuntionWire Cut, SIngle ended Barbed skin, Double-ended Sharp Skin, Single ended Twisted wire, Double-ended Twisted Wire.
Workable Wire MaterialsAWG32#-AWG16# Wire Dia above 16 can be installed with thread holes.
Productivity1300-1400 times/6000-12000 per hour
Cutting LengthStandard Machine: 8-850mm 5-1500mm (Long line can be customized)
Striiping Length 0.5mm-11.5mm
Tin Dipping Length0.5 mm-10.5mm
Torsion Length2mm-10.5mm
Wire RangeElectronic Wire, High Temperature Wire, Teflon Wire etc.
Twisted ModeDigital Operation (Motor electronic drive mode)
Testing DeviceLack of Wire detection, Wire knotting, Air pressure detection.
Air PressureAbout 6kg.
Transmission StructurePrecision screw, Guide Rail, Reducer.
