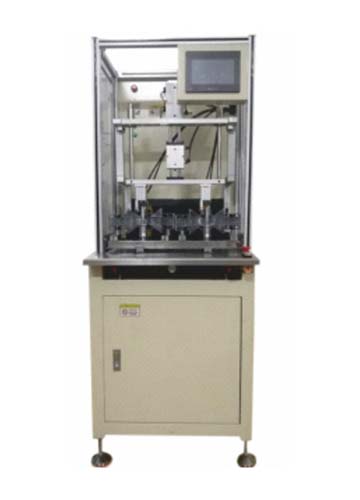

BLDC Motor Winding Machine

BLDC Motor Winding Machine BLDC Motor Winding Machine

BLDC Motor Winding Machine

Description

Model:TM 650

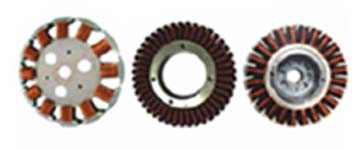

Applicable Products

  • Various Brushless outer stator Motor.
  • Brushless model aircraft motor.
  • Balace car motor.
  • Swing car motor.
  • DC Fan Motor.
  • Hanging Fan Motor

Specifications:

Number of Station2 Station
Wire DiameterΦ 0.1 - Φ 0.5 mm 0.5mm -1.5mm
OD of StatorΦ50mm-Φ250mm
Thickness of Stator0mm-60mm
Number of Slot2-36 Slots
Rotary Speed0-4500 rpm
Controller Four Axis PLC Controll & Touce Screen Operation
Drive Servo3kW 1Set
Transposition Servo 400W 2 Set
loose Mold Servo 750W 1set
Air Pressure 6kg/cm2
Power Supply AC 220V 50Hz
Dimension 2100*950*1950 mm
Weight 850 kg
