BLDC Motor Winding Machine

BLDC Motor Winding Machine BLDC Motor Winding Machine Single Station

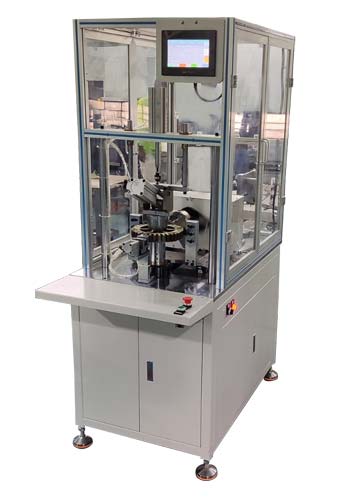

BLDC Motor Winding Machine (Single Station)

Description

Model:TM 650

Applicable Products

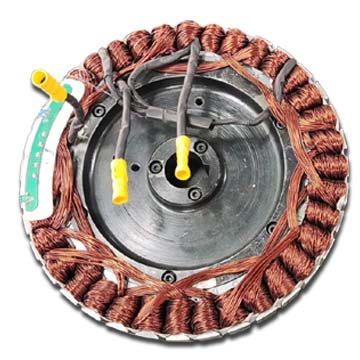

  • Various Brushless outer stator Motor.
  • Brushless model aircraft motor.
  • Balace car motor.
  • Swing car motor.
  • DC Fan Motor.
  • Hanging Fan Motor

Specifications:

Number of Station1 Station
Winding diameter Ф 0.1Ф 0.7mm
OD of Stator20-140 mm
Stack height5-50mm
Cable width 30mm
The counting accuracy is ± 0.05 circle
Number of stator slots 2 ~ 36 Slots
Drive Servo 3kW 1 Set
Speed 0-2000 r.p.m (adjusted according to product line diameter)
ControllerMotion Controller
Power Supply AC 220V 50Hz
Dimension 850 (L) x630 (W) X1300 (H) mm
Weight 350 kg
